Description
| Motherboard Specifications | |
|---|---|
| CPU | AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors (Go to GIGABYTE’s website for the latest CPU support list.) |
| Chipset | AMD B650 |
| Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD Extended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
| Onboard Graphics | Integrated Graphics Processor: – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version.– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen™ 7000 Series/9000 Series: PCIe 4.0 x16 – AMD Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8 – AMD Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4 * The PCIEX16 slot supports a graphics card or NVMe SSD only. Chipset: – 1 x PCI Express x1 slot, PCIe 3.0, x1 (PCIEX1) |
| Storage Interface | 1 x M.2 (M2A_CPU), CPU integrated, Socket 3, M key, 2580/2280 SSDs: – Ryzen™ 7000/9000: PCIe 4.0 x4/x2 – Ryzen™ 8000 Phoenix 1: PCIe 4.0 x4/x2 – Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4/x2 4 x SATA 6Gb/s connectors RAID 0, 1, 10 supported on both NVMe and SATA |
| USB | CPU: – 2 x USB 3.2 Gen 1 (rear) – 1 x USB 2.0/1.1 (rear) Chipset: – 2 x USB 3.2 Gen 1 (internal) – 7 x USB 2.0/1.1 (3 rear, 4 internal) |
| Internal I/O Connectors | 1 x 24-pin ATX 1 x 8-pin ATX 12V 1 x CPU fan header 2 x system fan headers 1 x addressable LED header 1 x RGB LED header 1 x M.2 Socket 3 4 x SATA 6Gb/s 1 x front panel 1 x front audio 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x TPM header 1 x Clear CMOS jumper |

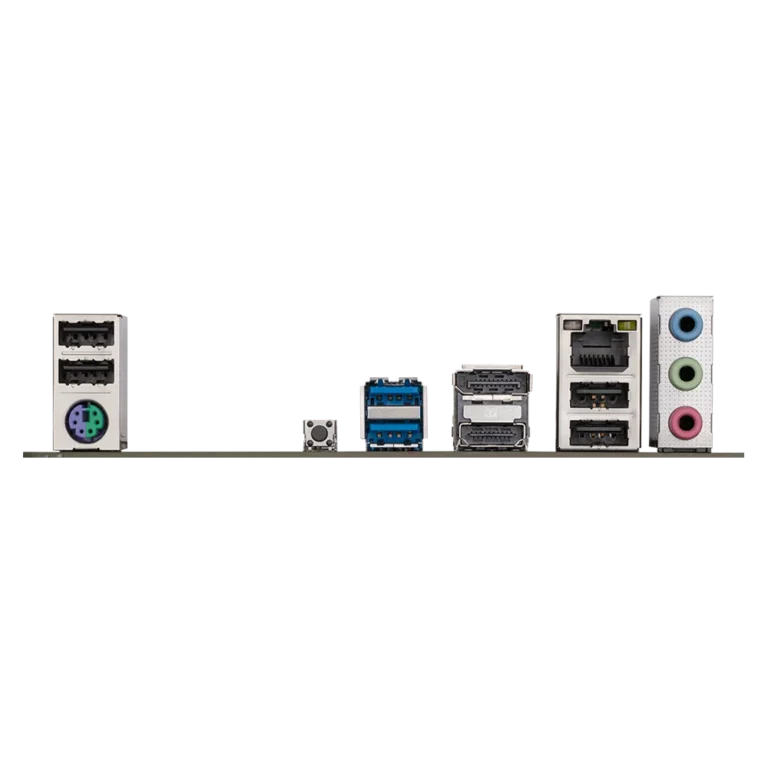

| Back Panel Connectors | 4 x USB 2.0/1.1 1 x PS/2 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 1 x DisplayPort 1 x HDMI 1 x RJ-45 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage/Temperature/Fan speed detection Water flow detection Fan fail warning Fan speed control (*Fan dependent) |
| BIOS | 1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * GCC apps vary by model/specs Support for Q-Flash / Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM) LAN bandwidth management |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Form Factor | Micro ATX; 23.0cm x 22.5cm |
