Product Features

Ready for Advanced AI PC: Designed for the future of AI computing, this motherboard is built to handle demanding AI applications with the power and connectivity you need. It helps you plan a system that is ready for heavier workloads without feeling limited by the platform. That means you can focus on building and upgrading with confidence as your needs grow.

Intel LGA1700 Socket Support: Compatibility with 14th, 13th and 12th Gen Intel processors makes it easy to choose the CPU that fits your build goals. Whether you are upgrading an existing setup or starting fresh, the LGA1700 socket keeps your options open across multiple Intel generations. This flexibility helps you balance performance and budget while staying on a current platform.

Ultrafast Connectivity: PCIe 4.0 support and two PCIe 4.0 M.2 slots let you build a responsive system with modern expansion and storage options. Realtek 2.5Gb Ethernet and WiFi 6 give you fast, reliable networking for downloads, streaming, and online work. Front USB 3.2 Gen 1 support also makes it convenient to plug in everyday devices right from your case front panel.

Comprehensive Cooling and Aura Sync Lighting: VRM heatsink, M.2 heatsink, and PCH heatsink help manage heat for stable operation during longer sessions. Hybrid fan headers and Fan Xpert 2+ give you more control over airflow so your system can stay cooler and quieter. Onboard Addressable Gen 2 headers make it simple to connect RGB LED strips and sync lighting with Aura Sync-capable hardware for a clean, coordinated look.

Product Specifications

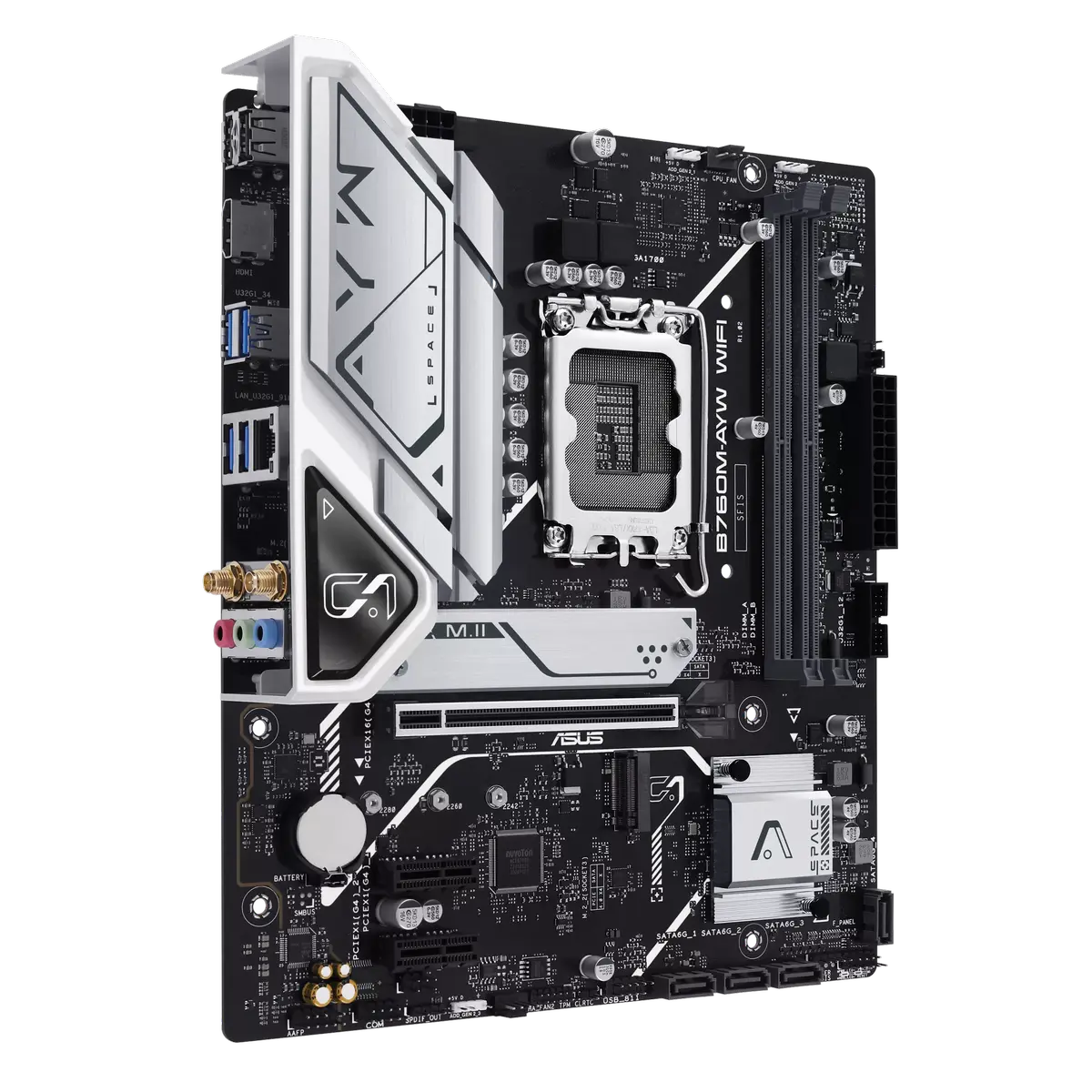

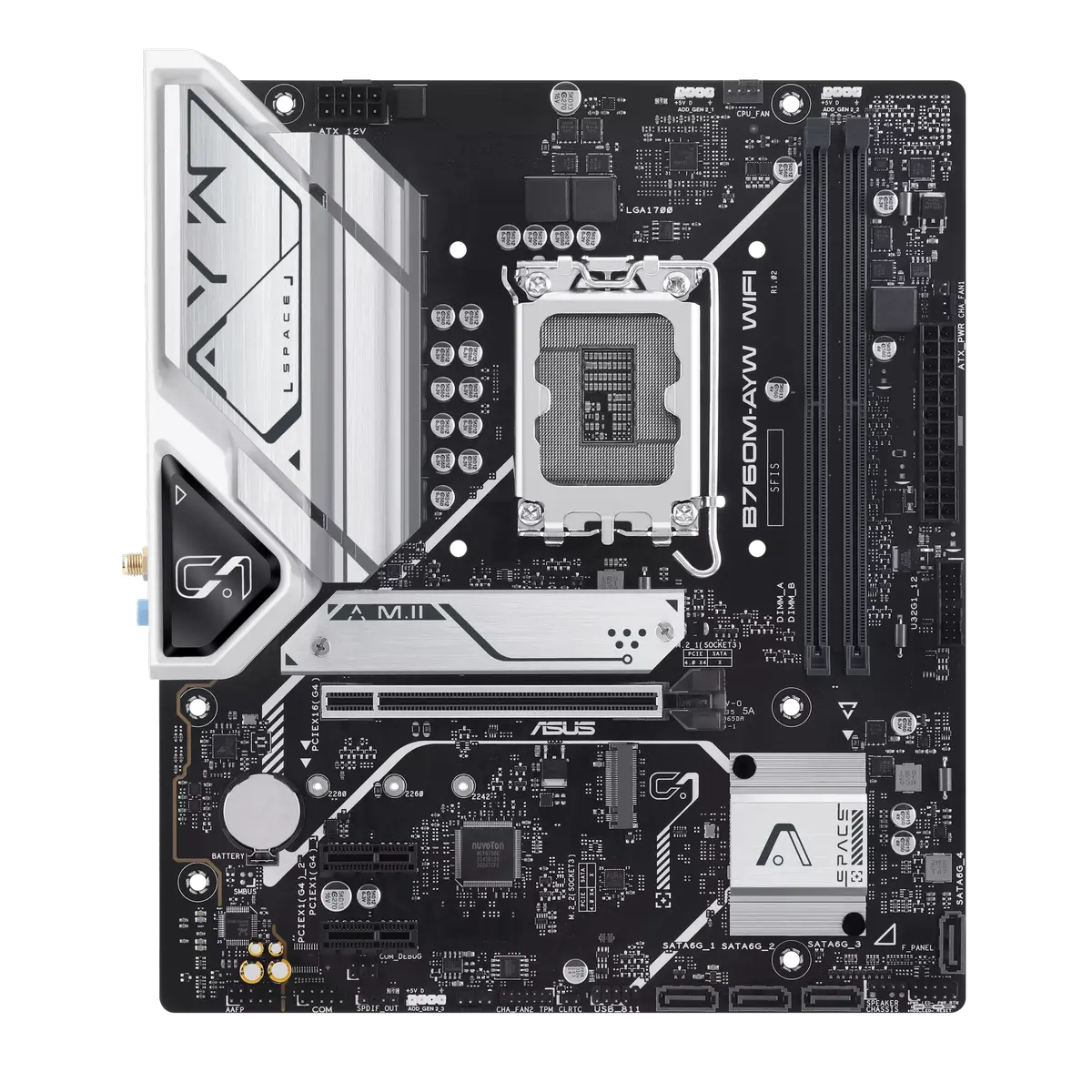

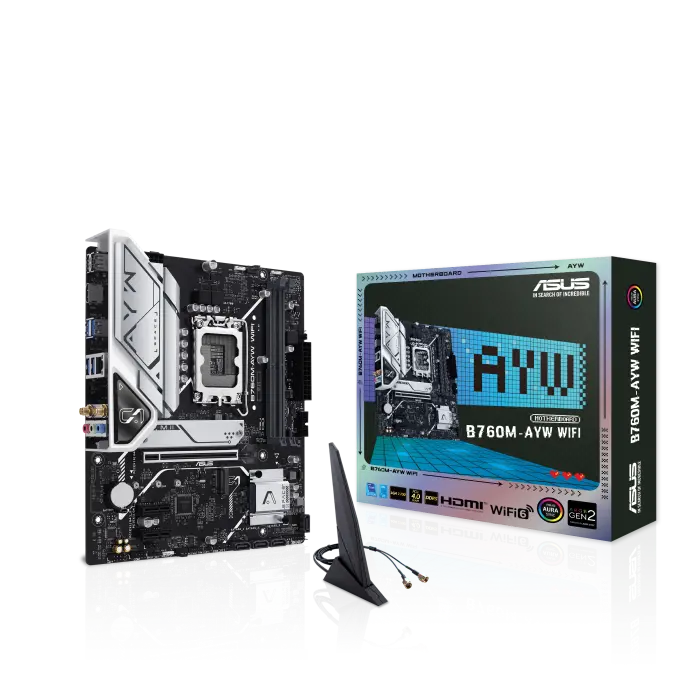

Model: ASUS B760M-AYW WIFI

Chipset: Intel B760

CPU Socket: Intel LGA1700

CPU Support: 14th, 13th and 12th Gen Intel processors

Form Factor: mATX

Memory Support: DDR5

Expansion: PCIe 4.0

M.2: Two PCIe 4.0 M.2 slots

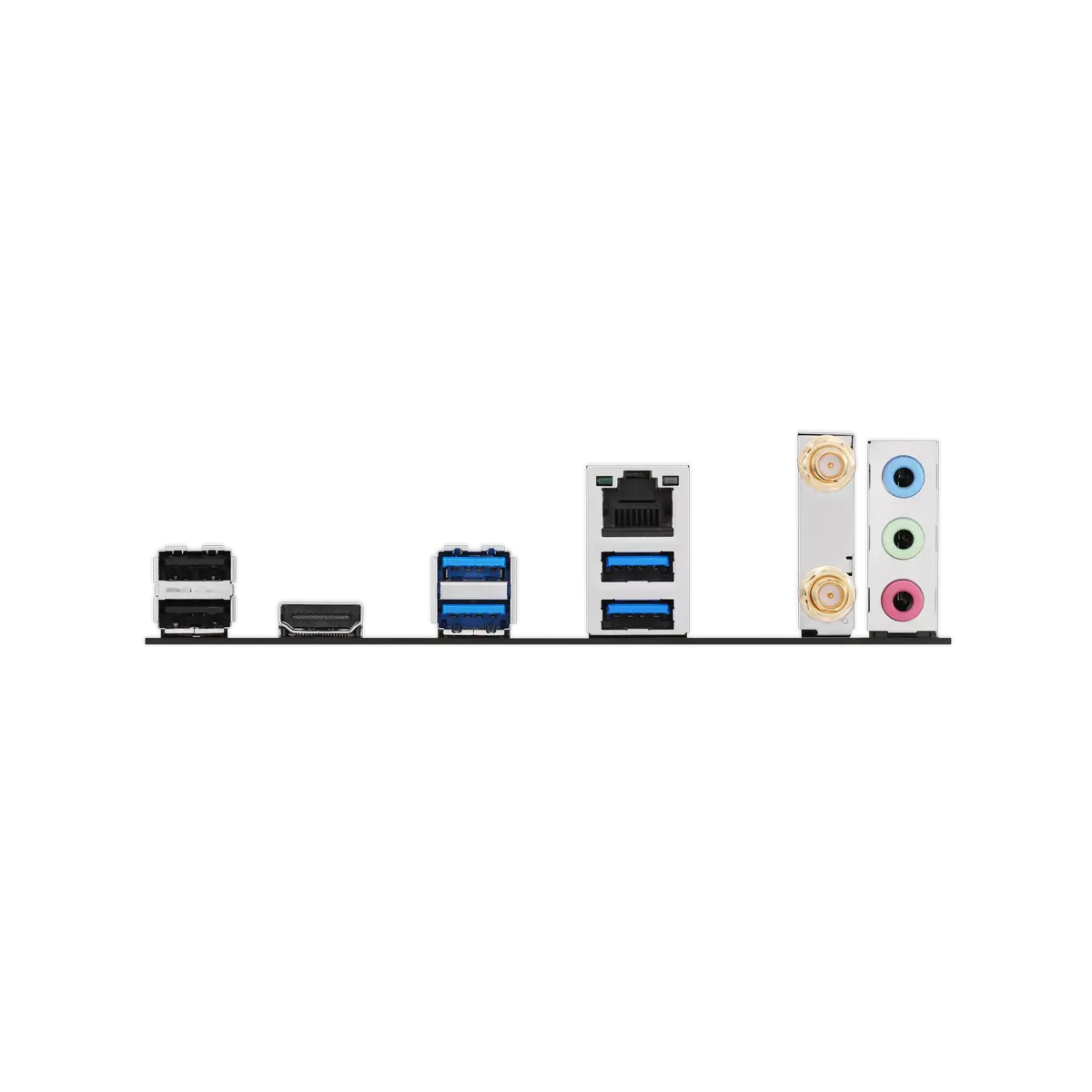

Networking: Realtek 2.5Gb Ethernet

Wireless: WiFi 6

Display Output: HDMI

Storage: SATA 6Gbps

USB: Front USB 3.2 Gen 1

Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers, Fan Xpert 2+

Lighting: Aura Sync, onboard Addressable Gen 2 headers for RGB LED strips
